Start with the power cable installation
Dense cable routes, installation access and specification requirements all influence the restraint system. Bring the project details together before choosing a product.
Cable route & layout
Identify cable diameters, formation and the available space on the ladder or tray. Include new routes and any existing infrastructure.
Restraint requirements
Provide the specified fault level, restraint spacing and support details so the relevant product and test information can be reviewed.
Installation planning
Consider access around the cable run, the installation sequence and the tools required by the selected restraint system.
Project procurement
Send quantities, project location and timing to discuss product options, availability and a quotation.
BAND-FAST: an option for dense cable runs

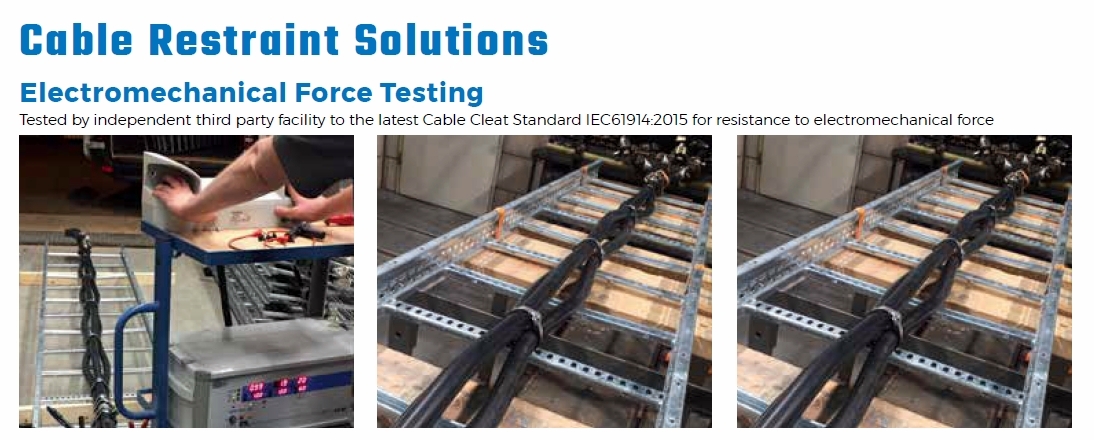

Images: Band-It manufacturer photography. Product information
BAND-FAST cable cleats offer a compact, low-profile restraint with coated and uncoated options. Suitable configurations allow installation after cable pulling and attachment directly to compatible cable-ladder rungs.
Compare the product configuration, cable size, wrap and installation method against your project requirements.
Explore cable cleats & PPA coated band →Short-circuit performance depends on the specific product, cable formation, spacing and installation. Confirm the selected arrangement against the manufacturer’s test data and the project engineer’s specification.
BAND-FAST cable restraint specifications
BAND-FAST cable cleats are available in PPA-coated and uncoated 316 stainless steel. The table identifies the product families and installation arrangements listed in the BAND-FAST Cable Cleat Solutions Brochure; select the complete assembly against your project requirements.
| Product family | Band width | Base material | Arrangement described | Cable protection |
|---|---|---|---|---|
| PPA-coated 3/8 inch | 9.5 mm | 316 stainless steel | Direct-to-rung, double wrap | No separate cushion channel for the coated arrangement |
| PPA-coated 1/2 inch | 12.7 mm | 316 stainless steel | Direct-to-rung, double wrap | No separate cushion channel for the coated arrangement |
| PPA-coated 5/8 inch | 15.88 mm | 316 stainless steel | Cross-wrap; confirm the required wrap count | No separate cushion channel for the coated arrangement |
| Uncoated 5/8 inch | 15.8 mm | 316 stainless steel | Direct-to-rung, double wrap | CS10E009 cushion sleeve required for the arrangement on page 5 |
| Uncoated 3/4 inch | 19.1 mm | 316 stainless steel | Direct-to-rung, double wrap | CS12E009 cushion sleeve required for the arrangement on page 5 |
Source: BAND-FAST Cable Cleat Solutions Brochure coated part tables, page 3 (PDF) and uncoated part tables, page 5 (PDF). The uncoated 5/8-inch width is transcribed as 15.8 mm from the page 5 part table.
View part numbers, lengths, pack quantities and cushion-sleeve dimensions. The complete brochures, test reports and installation downloads remain available below.
Short-circuit performance is specific to the tested assembly. Match the product, cable formation, wrap count, restraint spacing, support and liner or bracket to the applicable test report. A product-family name or band dimension alone does not establish a fault-current rating.
Where cleats fit in a data centre
Focus the restraint review on exposed power routes between major electrical equipment and along cable ladders.
- Transformer
- Switchgear
- UPS
- Distribution
Transformer feeders, switchgear connections, UPS input/output and bypass routes are common places to assess cable restraint. Actual topology and support requirements vary by project.
Explore cable cleats and coated band · Read the customer catalogue
Compare the complete installation package
| Project consideration | Conventional assemblies | BAND-FAST approach |
|---|---|---|
| Components | May use separate cleat bodies, brackets, fixings and liners. | Specified arrangements can reduce separate components; uncoated versions still require the specified liner. |
| Installation sequence | Some arrangements require hardware to be staged before cable pulling. | Compatible arrangements allow installation after cables are placed and aligned. |
| Space and selection | Fixed sizes and hardware can affect tray clearance and stock requirements. | Low-profile banding and diameter adjustment can simplify the package. |
| Performance evidence | Compare the actual cable formation, peak current, spacing, wrap and support against the matching test report for either system. | |
Download the existing one-page comparison. Material and installation savings depend on the project and the assembly being compared.
Bring the selection inputs together
- Cables: outside diameter, number of conductors, formation and jacket limitations.
- Fault duty: the project engineer’s required peak kA, with RMS values identified separately.
- Support: slotted or unslotted ladder, rung-slot dimensions, spacing, mounting method and tool access.
- Complete assembly: band, clip, wrap count, liner or bracket, compatible tooling and installation procedure.
- Delivery and records: quantities, project location, required dates, inspections and any specified installation records.
Questions before specifying cable restraint
What information is needed to select BAND-FAST for a data centre?
Provide the project fault duty, cable outside diameter and formation, tray or ladder arrangement, support and restraint spacing, and installation environment. Include the product reference, wrap, liner or bracket if already specified. UES Promura can help locate the relevant product documents and report for review against the project engineer's requirements.
Source: BAND-FAST Cable Cleat Solutions Brochure selection inputs (PDF, page 5). Send your project details.
Are peak kA and RMS kA interchangeable?
No. The laboratory reports record peak and RMS current separately, together with the duration, cable formation, spacing and test configuration. Identify which current quantity the project specification uses and match the complete test conditions. The guide to reading the report tables explains where these values appear.
Do the case-study quantities or delivery times apply to my project?
The published quantities and timings describe the manufacturer's named regional examples. Australian availability, lead time, staged delivery, tooling and installation support must be confirmed for your order. Include quantities, location and required dates when requesting a quotation.
Source: APAC project observations (PDF, page 3). Read the coated/uncoated, liner and tooling answers.
Source documents checked 17 October 2026. Selection remains specific to the proposed assembly and the project requirements.
Tools for cable-restraint installation
Compare all three tools — view the feature matrix →
Choose installation tools alongside the selected band and cleat configuration. These manual and powered tools support controlled installation in cable trays and other project environments.
DT2000 Digital Banding Tool
Digital control for cable-cleat installation where space is limited.
- A torque sensor digitally controls and confirms tightening force for consistent band tension.
- Designed for cable-tray installations and Band-It’s short-circuit-tested cable-cleat systems.
- Optional data capture, QR-code settings and exportable records support installation quality checks.
Battery included. Uses a Makita battery platform.
Download DT2000 Brochure (PDF)
C075EL Electric Bantam
A battery-powered alternative to manual Bantam banding for field installation.
- Applies controlled tension and cuts the band, with a design optimised for coated band and cable protection.
- Helps secure the restraint without excessive clamping force.
- Handles band widths from 3/8 to 3/4 inch (approximately 9.5–19.1 mm), up to 0.030 inch (0.76 mm) thick.
Battery included. Confirm selected band compatibility with our team.
Download C075EL Brochure (PDF)
C075 Manual Bantam Tool
A compact, lightweight hand tool for tensioning and cutting band where access is limited.
- Manual ratchet action applies tension, with a built-in cutter to trim the band.
- A three-position handle supports one- or two-handed tensioning in tight working areas.
- Suitable for compatible Band-It ties, PPA coated band and BAND-FAST products.
No battery required. For compatible ties or coated band up to 19 mm wide and 0.63 mm steel thickness; confirm the tool and installation method for your selected restraint.
Download C075 Tool Instructions (PDF)Follow the specified tool settings and installation method for your selected cable-restraint system.
Ask about tools for your projectLokMate clip finishing
The LT625D LokMate finishes the clip after band tensioning. Match the finishing tool and procedure to the selected restraint, and confirm supply with UES Promura.
Read the existing LokMate brochure · LokMate Clip Fastening Tool Operating Instructions · Watch C075EL / LokMate training
Manufacturer-reported data centre projects
These examples come from BAND-IT IDEX's 2026 data centre case study. They describe projects in APAC and Western Europe. The customer and individual sites are unnamed in the source, and these examples are not presented as UES Promura installations in Australia.
APAC hyperscale campus
Project need: a multi-building expansion with a compressed construction schedule and staged material requirements.
Reported supply: 20,000 BAND-FAST cleats and two DT2000 Digital Banding Tools. BAND-IT dates the first shipment to December 2025, with remaining volume staged through 2026.
Reported outcome: the first lot arrived approximately three weeks after the initial purchase order. BAND-IT also reports simpler sizing work and daily installation-progress records using DT2000 data logs. These are the manufacturer's project observations; current supply timing and tool options require a quotation.
Western Europe multi-facility campus
Project need: dense tray installations and late specification changes from a restraint approach using separate rubber sleeves.
Reported supply: an on-site demonstration of PPA-coated BAND-FAST led to a call-off order for 24,000 pieces plus installation tools for the second half of the facility build.
Reported outcome: BAND-IT describes fewer selection and installation steps, with the lower-profile arrangement helping preserve tray space. The case study does not publish a project-specific fault-current test result or a measured installation-time comparison.
Information to bring to an Australian project review
Use the examples to frame a project discussion: cable formation and outside diameter, support and restraint spacing, access for installation tools, quantities, staged delivery dates and the records your project requires. Confirm the actual assembly against the matching test report and request a project-specific quotation from UES Promura.
Source checked 17 October 2026: BAND-IT IDEX, Data Center Case Study, ©2026, pages 2-3. Quantities and outcomes are attributed to the manufacturer; the source does not identify an Australian site or local customer.
Download the complete data centre case study
Read the manufacturer case-study guide and project-review questions.
Liquid cooling: CDU and in-rack hose assemblies
Cooling hose connections introduce a different fastening task from power-cable restraint. For CDU and in-rack manifold assemblies, review hose retention, vibration, space, service access and installation consistency.
Junior Smooth ID clamps
The smooth internal surface and low-profile fastening are intended to support compatible hose assemblies. Confirm the hose, fitting, coolant, pressure, temperature and required validation for the actual assembly.
Field and OEM tooling
The liquid-cooling brochure identifies Pok-It II for field assembly and IT5000 pneumatic tooling for repeat OEM production. Tool choice depends on the selected clamp and supported size.
Ask UES Promura to confirm the current tooling configuration, installation instructions and supply for your project.
Download Liquid Cooling Solutions (PDF) · Discuss a cooling-hose application
Installation training
Follow the procedure for your selected restraint assembly. Tensioning and clip finishing are separate steps.
View the manual C075 and short-circuit demonstrations · August 2026 selection webinar · June 2026 mechanical protection webinar
Understand the evidence
- PDL-26.160.04 — CFFC cable cleat test report (300 mm / 600 mm) — 31 laboratory report pages plus a UES code-edition cover; see the tested wrap, spacing and bracket configurations. Read the configuration notes.
- Short-circuit reports and configuration notes — tested arrangements and matching conditions.
- BAND-IT internal fire evaluation — 24 April 2026 — internal, non-accredited exposure and retention evaluation; not third-party assembly fire certification.
- PPA 571 coating fire/fume references — coating properties, distinct from a complete cleat assembly.
- Lloyd’s Register LR26344037TA renewal — listed ties, buckles and band for its stated marine/offshore/industrial scope; expires 7 July 2031.
For final selection, request the report and instructions that match the specified product, formation, wrap, spacing and support.
