Bolt clamps and Giant Band for mounting and clamping applications. Compare the D50489 and D50089 clamp assemblies and their compatible band below.
Specifications

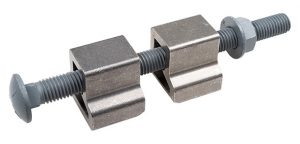

D50489 bolt clamps
| Item code | D50489 (also D504 & BAB58) |
|---|---|
| Assembly | 2 aluminium extruded retainers; 1 × 16mm × 200mm Grade 5 carriage bolt; 1 × 16mm nut |
| Contents | 25 bolt clamps per box |
| Shipping weight | 15kg |
G432 Giant Band
| Item code | G432 (G43299) |
|---|---|
| Length per roll | 30.5m |
| Width | 31.75mm |
| Thickness | 1.12mm |
| Shipping weight | 9kg |
D50089 bolt clamps
| Item code | D50089 (also D500 & BAB38) |
|---|---|
| Assembly | 2 aluminium extruded retainers; 1 × 9.5mm × 150mm Grade 5 carriage bolt; 1 × 9.5mm nut |
| Contents | 50 bolt clamps per box |
| Shipping weight | 11kg |
G430 Giant Band
| Item code | G430 (G43099) |
|---|---|
| Length per roll | 30.5m |
| Width | 19.05mm |
| Thickness | 1.12mm |
| Shipping weight | 5.5kg |
Product details & applications
Can also be used with Band-It C206 band: 19.05mm × 0.76mm × 30.5m.
Compatible tools & related products
Related downloads
Catalogues & Product Guides
| Document | Format |
|---|---|
| Band-It Band & Buckle Electrical Catalogue | |
| Band-It IDEX Product Solutions Guide | |
| Band-It Hose Clamp Catalogue | |
| D50489 Bolt-Clamp Brochure | |
| Band-It D50089 (Also D500 & BAB38) | |
| Band-It Applications |
Tools & Instructions
| Document | Format |
|---|---|
| Band-It Tools & Instructions | |
| Band-It Product List And Tool Manuals | |
| D50489 Bolt Clamps Instructions |
Technical Data
| Document | Format |
|---|---|
| Break Strength Table Newtons | |
| Band-It Break Strength Graph |
Need help choosing a Band-It product?
Contact UES Promura for product advice and technical support.
