Specifications & features
- Increased profitability
- Logistical and handling benefits
- 316 grade stainless steel
- High Performance 0.42mm thick PPA 571 coating eliminates the need for protective channel or lining
- Zero Halogen – low smoke and fumes
- Materials covered by multiple approvals
- Standard Width: 15.88mm – other widths available
- Large diameter adjustment – fewer stock items
Product details & applications
Explore project resources, BAND-FAST options and data centre enquiries.
Cable cleat resources
Cable Cleat Calculator — select a product and download results

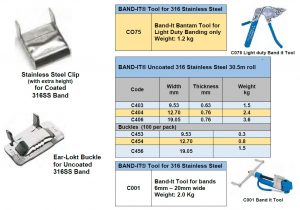

Band-It 316 Stainless Steel Band – Coated and Uncoated
The Band-It 316 Stainless Steel provides superior corrosion resistance in atmospheric and marine conditions.
It is available either as Coated or Uncoated.
Band-It PPA Coated 316 Stainless Steel Band – Ideal for Cable Cleats & Cable Bundling.
The thick PPA coating is designed to eliminate damage to electrical cables and is the best solution for cable bundling.
Band-It’s Band-Fast cable restraint solutions are the perfect alternative to cable cleats
for cable management that require short-circuit protection to IEC61914:2015 Standards.
Band-It’s Band-Fast products cost significantly less than traditional cable cleats.
When you need to increase productivity and reduce the risk of injury,
use Band-It PPA Coated Band-Fast and create a safe and efficient work environment.
Band-It 316 stainless steel coated with 0.42mm thick PPA.
The PPA coating make this product ideal for cable bundling.
Eliminates damage to electrical cables.
BAND-FAST part numbers and dimensions
Use these ordering tables to identify the PPA-coated and uncoated 316 stainless steel BAND-FAST products listed in the BAND-FAST Cable Cleat Solutions Brochure. Length is the manufactured band length, not the cable diameter or circumference. The brochure lists 100 cleats per bag for each family below.
The tables are a readable summary alongside the original PDFs. Confirm the complete restraint assembly, installation method and supply requirements with UES Promura.
PPA-coated 3/8 inch — 9.5 mm
Direct-to-rung, double wrap. No separate cushion channel for the coated arrangement described in BAND-FAST Cable Cleat Solutions Brochure.
| Part number | Band length | Pack quantity |
|---|---|---|
| CFFC-F0615M040-A900 | 400 mm | 100 / bag |
| CFFC-F0615M050-A900 | 500 mm | 100 / bag |
| CFFC-F0615M060-A900 | 600 mm | 100 / bag |
| CFFC-F0615M070-A900 | 700 mm | 100 / bag |
| CFFC-F0615M080-A900 | 800 mm | 100 / bag |
| CFFC-F0615M100-A900 | 1000 mm | 100 / bag |
| CFFC-F0615M120-A900 | 1200 mm | 100 / bag |
Source: BAND-FAST Cable Cleat Solutions Brochure, ©2026, page 3 (PDF).
PPA-coated 1/2 inch — 12.7 mm
Direct-to-rung, double wrap. No separate cushion channel for the coated arrangement described in BAND-FAST Cable Cleat Solutions Brochure.
| Part number | Band length | Pack quantity |
|---|---|---|
| CFFC-F0815M040-A900 | 400 mm | 100 / bag |
| CFFC-F0815M050-A900 | 500 mm | 100 / bag |
| CFFC-F0815M060-A900 | 600 mm | 100 / bag |
| CFFC-F0815M070-A900 | 700 mm | 100 / bag |
| CFFC-F0815M080-A900 | 800 mm | 100 / bag |
| CFFC-F0815M100-A900 | 1000 mm | 100 / bag |
| CFFC-F0815M120-A900 | 1200 mm | 100 / bag |
Source: BAND-FAST Cable Cleat Solutions Brochure, ©2026, page 3 (PDF).
PPA-coated 5/8 inch — 15.88 mm
Cross-wrap; confirm the required wrap count. No separate cushion channel for the coated arrangement described in BAND-FAST Cable Cleat Solutions Brochure.
| Part number | Band length | Pack quantity |
|---|---|---|
| CFFC-F1015M040-A900 | 400 mm | 100 / bag |
| CFFC-F1015M050-A900 | 500 mm | 100 / bag |
| CFFC-F1015M060-A900 | 600 mm | 100 / bag |
| CFFC-F1015M070-A900 | 700 mm | 100 / bag |
| CFFC-F1015M080-A900 | 800 mm | 100 / bag |
| CFFC-F1015M100-A900 | 1000 mm | 100 / bag |
| CFFC-F1015M120-A900 | 1200 mm | 100 / bag |
Source: BAND-FAST Cable Cleat Solutions Brochure, ©2026, page 3 (PDF).
Uncoated 5/8 inch — 15.8 mm
Direct-to-rung, double wrap. CS10E009 cushion sleeve required for the arrangement on page 5.
| Part number | Band length | Pack quantity |
|---|---|---|
| CFEC-F1030M050 | 500 mm | 100 / bag |
| CFEC-F1030M060 | 600 mm | 100 / bag |
| CFEC-F1030M070 | 700 mm | 100 / bag |
| CFEC-F1030M080 | 800 mm | 100 / bag |
| CFEC-F1030M100 | 1000 mm | 100 / bag |
| CFEC-F1030M120 | 1200 mm | 100 / bag |
Source: BAND-FAST Cable Cleat Solutions Brochure, ©2026, page 5 (PDF).
Uncoated 3/4 inch — 19.1 mm
Direct-to-rung, double wrap. CS12E009 cushion sleeve required for the arrangement on page 5.
| Part number | Band length | Pack quantity |
|---|---|---|
| CFEC-F1230M050 | 500 mm | 100 / bag |
| CFEC-F1230M060 | 600 mm | 100 / bag |
| CFEC-F1230M070 | 700 mm | 100 / bag |
| CFEC-F1230M080 | 800 mm | 100 / bag |
| CFEC-F1230M100 | 1000 mm | 100 / bag |
| CFEC-F1230M120 | 1200 mm | 100 / bag |
Source: BAND-FAST Cable Cleat Solutions Brochure, ©2026, page 5 (PDF).
Cushion sleeves for uncoated BAND-FAST
BAND-FAST Cable Cleat Solutions Brochure lists the following cushion sleeves for CFEC uncoated BAND-FAST. Its page 5 tested arrangements specifically require CS10E009 or CS12E009. Confirm a matching test report before substituting another sleeve material.
| Part number | Material | For band width | Outside width | Inside width | Height | Roll length |
|---|---|---|---|---|---|---|
| CS10E009 | Neoprene | 5/8 inch | 23 mm | 16 mm | 9 mm | 9 m |
| CS12E009 | Neoprene | 3/4 inch | 26 mm | 22 mm | 6 mm | 9 m |
| CS10E019 | TPE-LS/ZH | 5/8 inch | 23 mm | 16 mm | 9 mm | 9 m |
| CS12E019 | TPE-LS/ZH | 3/4 inch | 26 mm | 22 mm | 6 mm | 9 m |
Source: BAND-FAST Cable Cleat Solutions Brochure, ©2026, page 4 (PDF).
Confirm the tested assembly
Coated and uncoated products, direct-to-rung and cross-wrap arrangements, and different wrap counts have different test conditions. Match cable diameter and formation, peak fault current, spacing, support, liner or bracket and installation instructions to the selected test report. These ordering dimensions do not establish a short-circuit rating.
Maximum cable outside-diameter values in BAND-FAST Cable Cleat Solutions Brochure are guides only. Use the full brochure and matching report for selection, or ask UES Promura to review your proposed arrangement.
View short-circuit reports and configuration notes · Open the cable cleat calculator · Ask about a part number or assembly
BAND-FAST selection questions
What is the difference between coated and uncoated BAND-FAST?
Both ranges in BAND-FAST Cable Cleat Solutions Brochure use 316 stainless steel. PPA-coated BAND-FAST has a protective low-smoke, zero-halogen coating, and the coated arrangement described in BAND-FAST Cable Cleat Solutions Brochure allows direct contact with the cable jacket without a separate cushion channel. The uncoated arrangements use a separate protective cushion sleeve. Select the complete restraint assembly, including its wrap, support and installation method.
Source: BAND-FAST Cable Cleat Solutions Brochure coated arrangement (PDF, page 2) and uncoated arrangement (PDF, page 4).
Which cushion sleeve is required for uncoated BAND-FAST?
BAND-FAST Cable Cleat Solutions Brochure, page 5 specifies CS10E009 for its uncoated 5/8-inch double-wrap arrangement and CS12E009 for its uncoated 3/4-inch double-wrap arrangement. Page 4 also lists TPE-LS/ZH accessories. A listed accessory is not evidence that it can replace the sleeve in a particular tested assembly; confirm the matching report before substitution.
Source: BAND-FAST Cable Cleat Solutions Brochure uncoated part tables (PDF, page 5). See the part numbers and cushion-sleeve dimensions.
Does the band length tell me the cable diameter?
No. The ordering length is the manufactured band length. Selection also depends on cable outside diameter, formation, wrap count, support and the required restraint spacing. BAND-FAST Cable Cleat Solutions Brochure labels its maximum-cable-diameter figures as a guide only. Send the actual cable and installation details to UES Promura for configuration confirmation.
Source: BAND-FAST Cable Cleat Solutions Brochure coated part tables (PDF, page 3) and uncoated part tables (PDF, page 5).
Can I use the same fault-current result for a different wrap or mounting arrangement?
Confirm each arrangement against its own report. Cross-wrap, direct-to-rung and bracket tests describe different assemblies. A peak-current result does not transfer automatically when the wrap count, cable formation, spacing, liner or support changes. BAND-FAST Cable Cleat Solutions Brochure lists the 5/8-inch coated cross-wrap arrangement separately and directs readers to the applicable reports for slotted and bracket values.
Source: BAND-FAST Cable Cleat Solutions Brochure configuration notes (PDF, page 3). Use the report summaries and test conditions to locate the complete evidence.
Which installation tool should I choose?
Choose the tool alongside the selected band or cleat and its installation procedure. BAND-FAST Cable Cleat Solutions Brochure presents the C075EL Electric Bantam, C07569 manual Bantam and DT2000 Digital Banding Tool as installation options; it presents LokMate as a clip-finishing tool. Tool capacity alone does not confirm compatibility or the settings for a restraint assembly. Confirm the exact model, regional order code, band dimensions and required installation procedure with UES Promura.
Source: BAND-FAST Cable Cleat Solutions Brochure installation tools (PDF, page 6). Compare the published tool features and retain the full tool instructions.
Source documents checked 17 October 2026. These answers summarise the linked manufacturer documents; complete instructions, test reports and original PDFs remain available.
Compare the complete installation package
| Project consideration | Conventional assemblies | BAND-FAST approach |
|---|---|---|
| Components | May use separate cleat bodies, brackets, fixings and liners. | Specified arrangements can reduce separate components; uncoated versions still require the specified liner. |
| Installation sequence | Some arrangements require hardware to be staged before cable pulling. | Compatible arrangements allow installation after cables are placed and aligned. |
| Space and selection | Fixed sizes and hardware can affect tray clearance and stock requirements. | Low-profile banding and diameter adjustment can simplify the package. |
| Performance evidence | Compare the actual cable formation, peak current, spacing, wrap and support against the matching test report for either system. | |
Download the existing one-page comparison. Material and installation savings depend on the project and the assembly being compared.
Understand the evidence
- PDL-26.160.04 — CFFC cable cleat test report (300 mm / 600 mm) — 31 laboratory report pages plus a UES code-edition cover; see the tested wrap, spacing and bracket configurations. Read the configuration notes.
- Short-circuit reports and configuration notes — tested arrangements and matching conditions.
- BAND-IT internal fire evaluation — 24 April 2026 — internal, non-accredited exposure and retention evaluation; not third-party assembly fire certification.
- PPA 571 coating fire/fume references — coating properties, distinct from a complete cleat assembly.
- Lloyd’s Register LR26344037TA renewal — listed ties, buckles and band for its stated marine/offshore/industrial scope; expires 7 July 2031.
For final selection, request the report and instructions that match the specified product, formation, wrap, spacing and support.
Installation training
Follow the procedure for your selected restraint assembly. Tensioning and clip finishing are separate steps.
View the manual C075 and short-circuit demonstrations · August 2026 selection webinar · June 2026 mechanical protection webinar
