BAND-IT stainless steel banding strap and buckles for fastening and clamping. Compare Type 201 and Type 316 band, ordering dimensions and installation tools, with product advice from UES Promura in Melbourne.
Band & buckle ordering specifications
Find the published item codes, widths, thicknesses, roll lengths and buckle pack quantities below. These tables transcribe the linked UES Promura 2026 product brochures. The complete PDFs, product catalogue and tool instructions remain available in Downloads.
Type 201 stainless steel band
| Item code | Width (mm) | Thickness (mm) | Roll length (m) | Tool listed |
|---|---|---|---|---|
| C202 | 6.35 | 0.51 | 30.5 | C001 |
| C203 (Yellow Tote) | 9.53 | 0.64 | 30.5 | C001 |
| C204 (Blue tote) | 12.70 | 0.76 | 30.5 | C001 |
| C205 (Green tote) | 15.88 | 0.76 | 30.5 | C001 |
| C206 (Red tote) | 19.05 | 0.76 | 30.5 | C001 |
| G430 Giant Band | 19.05 | 1.12 | 30.5 | G402 |
| G431 Giant Band | 25.40 | 1.12 | 30.5 | G402 |
| G432 Giant Band | 31.75 | 1.12 | 30.5 | G402 |
Type 201 stainless steel buckles
| Item code | Width (mm) | Buckles per pack |
|---|---|---|
| C252 | 6.35 | 100 |
| C253 | 9.53 | 100 |
| C254 | 12.70 | 100 |
| C255 | 15.90 | 100 |
| C256 | 19.05 | 100 |
| G440 Giant Buckles | 19.05 | 25 |
| G441 Giant Buckles | 25.40 | 25 |
| G442 Giant Buckles | 31.75 | 25 |
Type 316 uncoated stainless steel band
| Item code | Width (mm) | Thickness (mm) | Roll length (m) | Tool listed |
|---|---|---|---|---|
| C403 | 9.53 | 0.63 | 30.5 | C001 |
| C404 | 12.70 | 0.76 | 30.5 | C001 |
| C406 | 19.05 | 0.76 | 30.5 | C001 |
Type 316 stainless steel buckles & clips
| Item code | Width (mm) | Pack quantity |
|---|---|---|
| C453 | 9.53 | 100 |
| C454 | 12.70 | 100 |
| C456 | 19.05 | 100 |
Choosing band, buckles and tools
The 201 brochure describes Type 201 for general banding applications; the 316 brochure describes Type 316 as offering superior corrosion resistance. Confirm the material against the actual exposure and application with UES Promura. A material grade or band dimension alone is not an installed clamp load rating or cable-restraint short-circuit rating.
The brochures list C001 (C00169) for the standard uncoated band and G402 (G40269) for Giant Band. Their tool descriptions specify C001 for 6–20 mm band with maximum thickness 0.76 mm, and G402 for 19–32 mm Giant Band at 1.12 mm thickness. Follow the complete tool instructions for installation.
Widths and thicknesses are reproduced as printed: C205 is 15.88 mm, while C255 is 15.90 mm; C403 is 0.63 mm thick. Confirm the exact band and buckle combination when ordering. The short item codes in these brochures are retained; no order-code suffix or unlisted substitution has been inferred.
For coated band and tested cable-restraint assemblies, see PPA-coated band and cable cleats.
Sources checked 17 October 2026: 201 stainless steel brochure (PDF, page 1) and 316 stainless steel brochure (PDF, page 1). These linked 2026 files do not print a revision identifier on page 1. All original PDF downloads are retained.
Stainless steel banding selection questions
What is the difference between banding strap and a preformed hose clamp?
Band and buckles let you form a clamp from a cut length of stainless steel band. A preformed clamp is supplied as a formed clamp in a listed size. Compare the band and buckle dimensions with the Jr Smooth ID preformed hose-clamp range, then confirm the fastening arrangement and compatible tool.
Should I choose Type 201 or Type 316 stainless steel band?
The linked 2026 brochures describe Type 201 for general banding applications and Type 316 for superior corrosion resistance. Match the grade to the actual exposure, then select the band width, thickness and buckle. See the material references and ask UES Promura to confirm the proposed combination.
What details are needed to order stainless steel band and buckles?
Provide the item code, material grade, band width and thickness, required quantity, buckle or clip and installation tool. The ordering tables distinguish band roll length from buckle pack quantity. For a hose clamp, include the assembly diameter and application; for power-cable restraint, use the BAND-FAST selection guidance and matching test report.
Band & buckle features
- Available in Type 201 and Type 316 stainless steel.
- A range of band widths, materials and thicknesses for different fastening applications.
- Band can be formed to virtually any diameter and shape using the C001 installation tool.
Compatible tools & pre-formed clamps

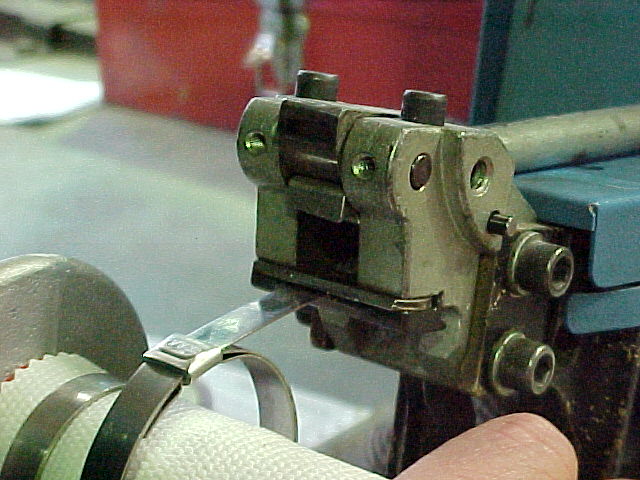

The C001 tool is used with band and buckles. Band-It pre-formed clamps can be applied with the C001 tool and J001 or J050 adapters.
For high-speed, high-volume clamping, the S750 pneumatic tool is designed for Band-It Jr pre-formed clamps with diameters from 20mm to 200mm.
Smooth ID clamps
Smooth ID clamps have a uniform, gap-free inside diameter. The range includes 44 sizes, widths from 6.4mm to 19.05mm, and Type 201 and Type 316 stainless steel. Their lower profile helps reduce snagging when dragging fire hoses.
