TPE cushion sleeve for cable-cleat and banding assemblies. Compare the two supplied sizes, review the metric profile dimensions and contact UES Promura to confirm fit for your cleat and cable.
What the sleeve does
A cushion sleeve forms a protective interface between a cable and a compatible metal cable-cleat strap. Confirm sleeve profile, cleat geometry, cable diameter and installation method together before specifying an assembly.

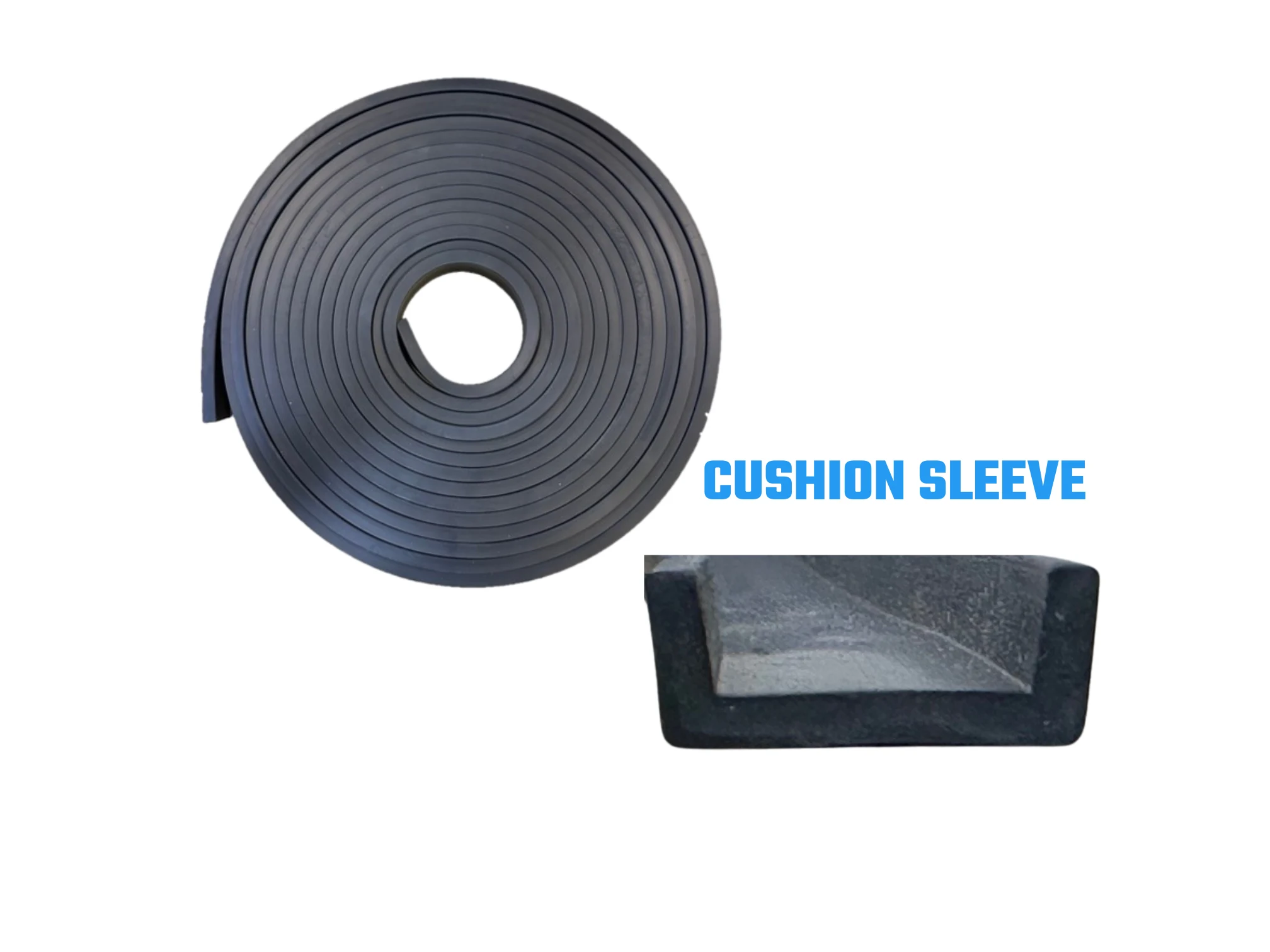

Cushion sleeve supplied in a continuous roll.

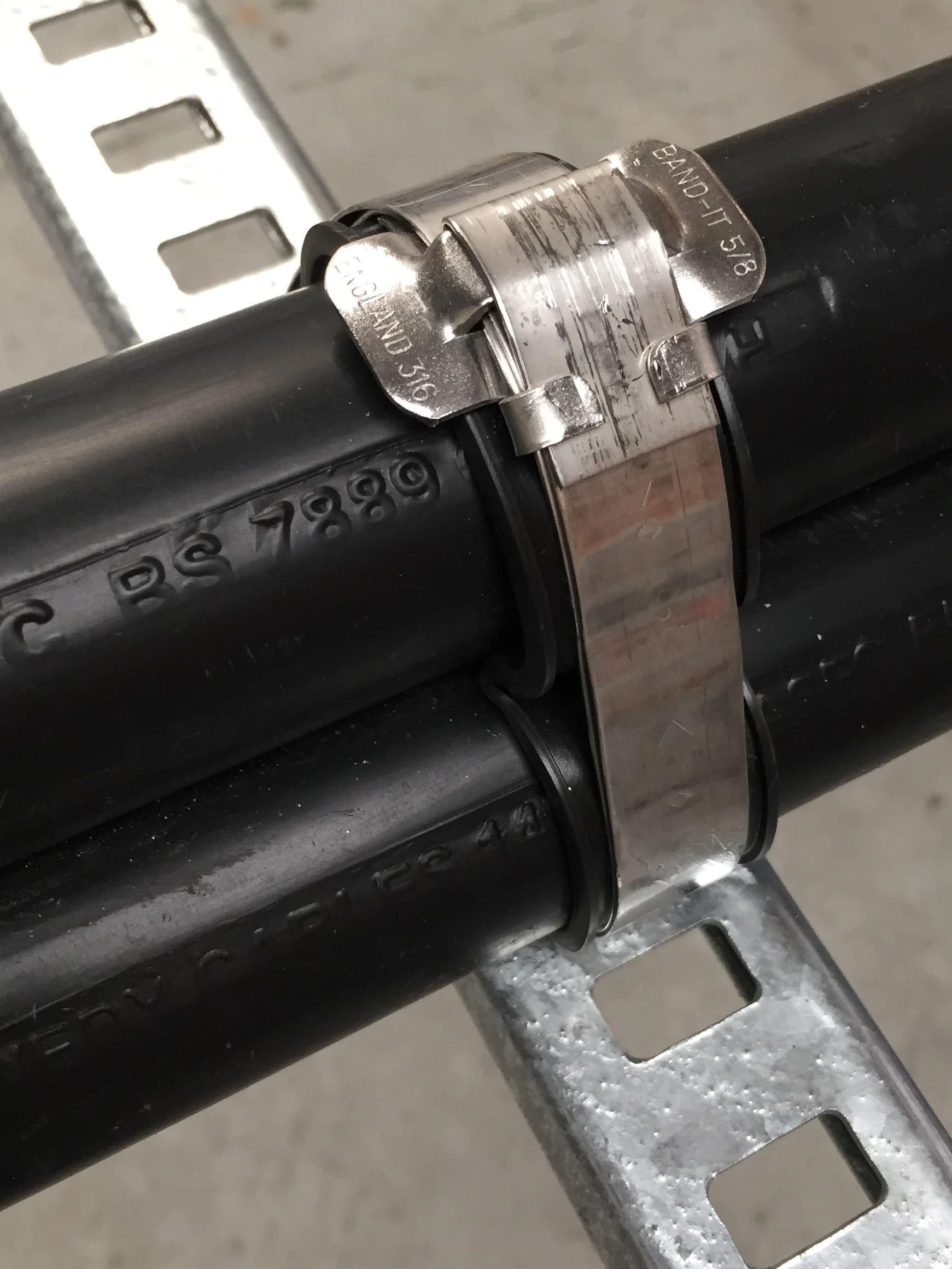

Protective sleeve beneath an uncoated BAND-FAST band.
Current TPE specifications
BAND-IT CS10E019
- Nominal size
- 15.88 mm
- Material
- TPE–LS/ZH
- Supply options
- 9 m BAND-IT roll30 m UES Promura roll
BAND-IT CS12E019
- Nominal size
- 19.05 mm
- Material
- TPE–LS/ZH
- Supply options
- 9 m BAND-IT roll30 m UES Promura roll
CS10E019 and CS12E019 identify the 9 m BAND-IT rolls. UES Promura also offers a 30 m roll for each size. Confirm current availability when ordering.
Metric profile dimensions
Match dimensions A–D to the cross-section below. All profile measurements are in millimetres.
Cross-section
- A
- Overall width
- B
- Internal width
- C
- Overall height
- D
- Wall thickness
Roll length
Profile dimensions are in millimetres, rounded to 0.1 mm.
| Product | AOverall width | BInternal width | COverall height | DWall thickness |
|---|---|---|---|---|
| CS10E019 | 23.1 mm | 16.8 mm | 9.7 mm | 3.0 mm |
| CS12E019 | 26.7 mm | 22.4 mm | 6.4 mm | 2.0 mm |
Check fit before specifying
Confirm the cleat strap width and profile, cable outside diameter, number and arrangement of cables, and the required fault rating for the complete restraint assembly. A cushion sleeve alone does not establish a short-circuit rating; use the test report for the matching cleat, support, spacing and installation configuration.
For a project-specific recommendation or a sample, contact UES Promura.
