Type 316 stainless steel cable ties for identification tagging and cable bundling, with a self-locking design installed by hand or with the KS652 tool.
Specifications & features

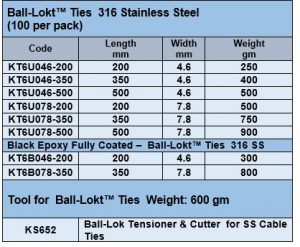

316 stainless steel cable tie sizes
The existing Ball-Lokt size chart lists the following uncoated and black epoxy-coated ties, with 100 ties per pack. Confirm current availability and the required finish with UES Promura.
| Code | Finish | Length (mm) | Width (mm) | Pack quantity |
|---|---|---|---|---|
| KT6U046-200 | Uncoated | 200 | 4.6 | 100 |
| KT6U046-350 | Uncoated | 350 | 4.6 | 100 |
| KT6U046-500 | Uncoated | 500 | 4.6 | 100 |
| KT6U078-200 | Uncoated | 200 | 7.8 | 100 |
| KT6U078-350 | Uncoated | 350 | 7.8 | 100 |
| KT6U078-500 | Uncoated | 500 | 7.8 | 100 |
| KT6B046-200 | Black epoxy coated | 200 | 4.6 | 100 |
| KT6B078-350 | Black epoxy coated | 350 | 7.8 | 100 |
Source: original Ball-Lokt size chart, visually checked 17 October 2026. The chart does not state a revision date. Tie length is the overall ordering length; it is not a maximum bundle diameter or an installed load rating.
Choosing and installing stainless steel cable ties

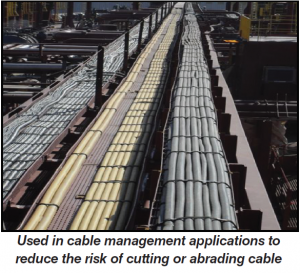

What are Ball-Lokt stainless steel cable ties used for?
The range is described for identification tagging and cable bundling. Choose the tie length, width and finish for the application, then confirm the installation requirements with UES Promura.
Which tool is used for Ball-Lokt ties?

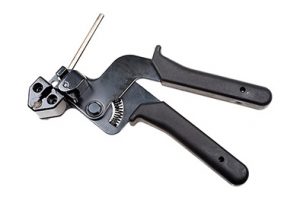

The self-locking ties can be installed by hand or with the KS652 tensioning and cutting tool. Follow the KS652 tool instructions for tensioning and tail cut-off.
Are cable ties the same as short-circuit cable cleats?
A cable tie size alone does not establish short-circuit restraint performance. For power-cable projects, review BAND-FAST cable cleats and PPA-coated band and confirm the complete assembly against the matching test report.
Product details & applications

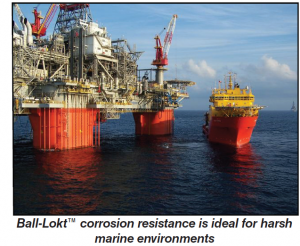

For applications ranging from identification tagging to bundling cables, Band-It Ball-Lokt™ stainless steel cable ties in 316 stainless steel, provide a longer life than nylon ties, especially in extreme climates. The epoxy coated ties are UV resistant and provide minimal cracking when exposed to lower temperatures or harsh conditions.

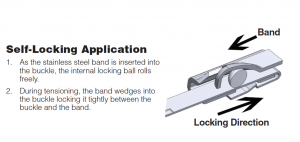

Self-locking design installation by hand or with the KS652 tool, to assure uniform tension and clean tail cut-off for safe handling.
